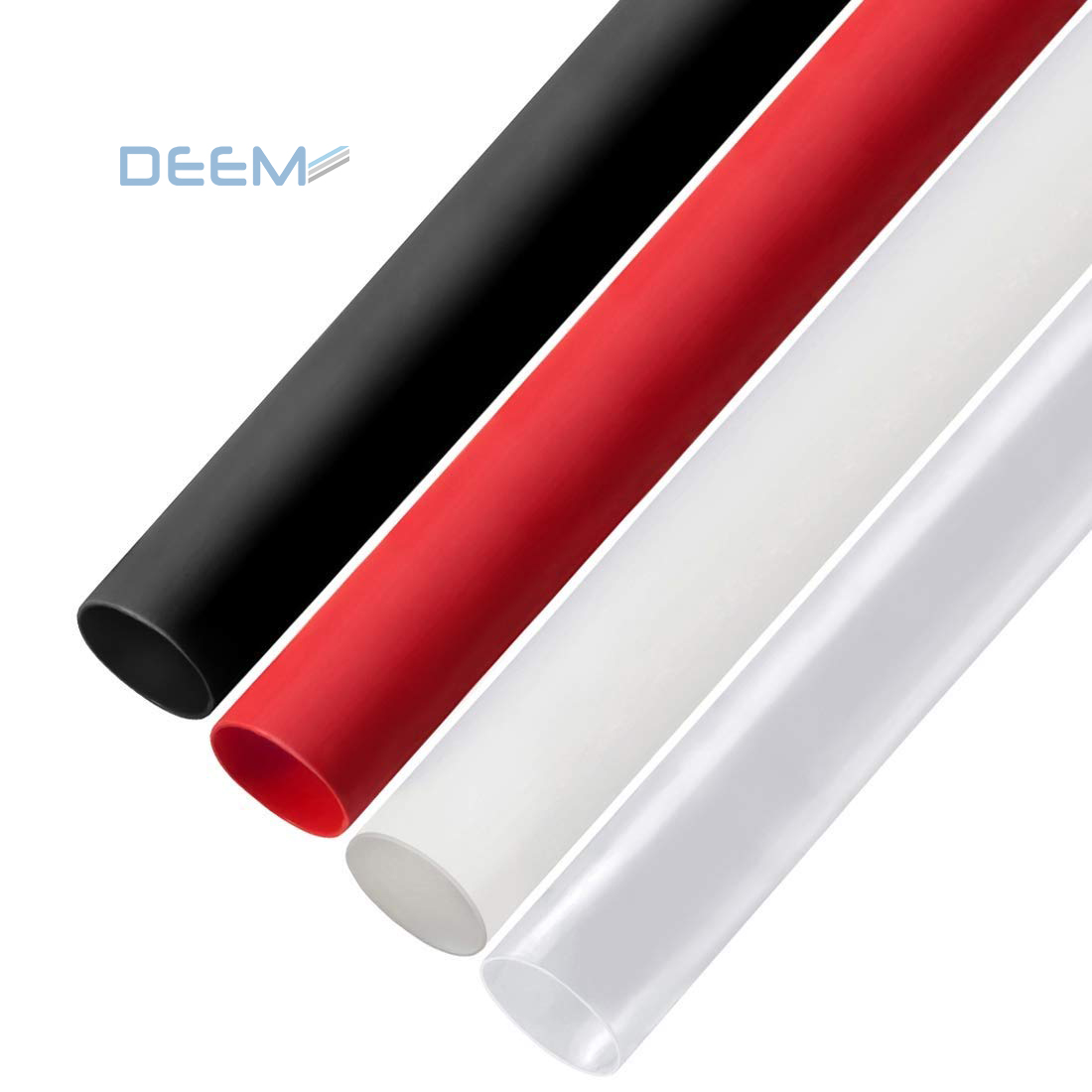

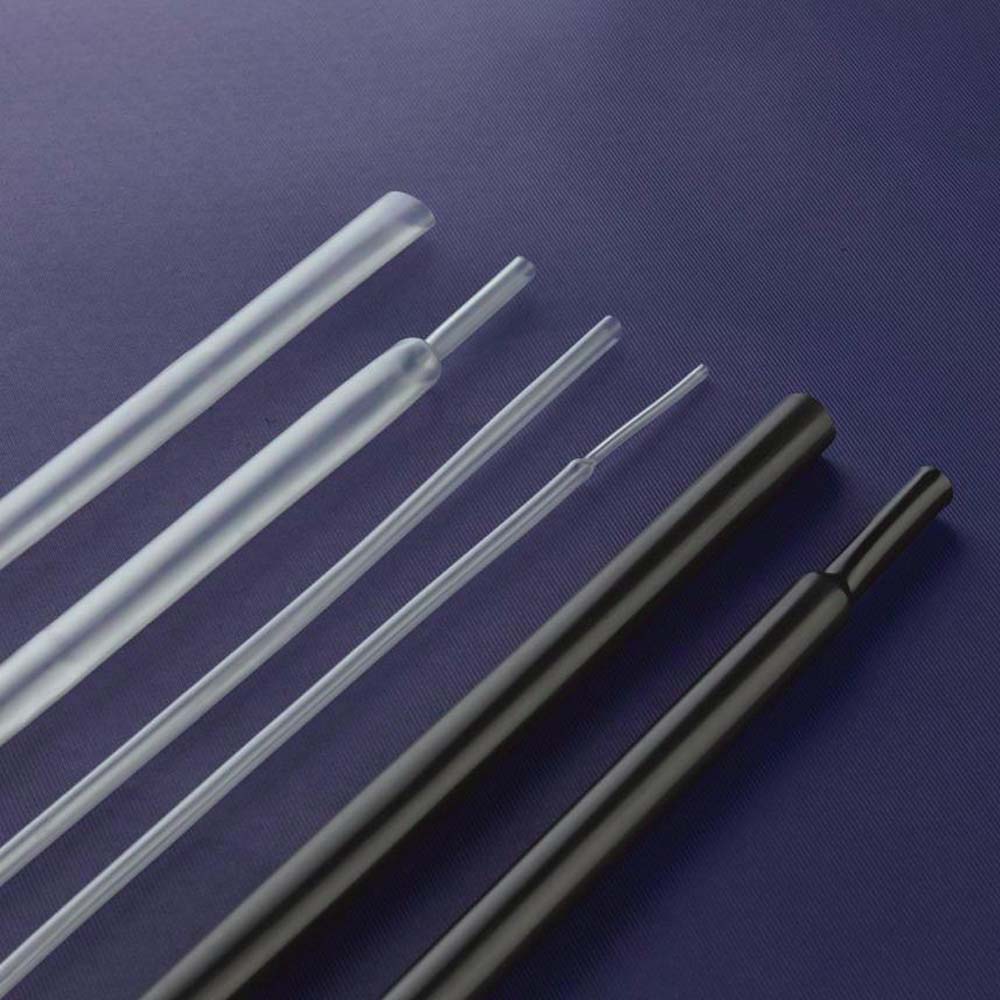

Shiny surface, non flame retardant heat shrink tubing
- BrandDEEM
- TypeDM-T105
Applications
General purpose polyolefin tubing. Economical and halogen free
which makes it ideal product when flame retardant properties are
not needed.
Features
Conforms to substrates more uniformly and with less longitudinal
change than most PVC based tubing. Transparent version offers
exceptional transparency to protect marked surfaces.
Various
Operating temperature: -55°C to + 105°C
Minimum shrink temperature: 80°C
Minimum fully recovery temperature: 100°C
Standard colors:
Shiny-black, crystal-clear. Other colors available on request.
Technical Data
Property
Test Method
Typical Data
Operating temperature
UL 224
-55°C to+105℃
Tensile strength
ASTM D 2671
>10.4 MPa
Elongation at break
ASTM D 2671
>500%
Longitudinal shrinkage
UL224
0±5%
Eccentricity
ASTM D 2671
<30%
Flammability
-
Flammable
Dielectric strength
IEC 93
>25 KV/mm
Volume resistance
ASTM D 2671
1014Ω.cm
Copper stability
ISO 62
Pass
Dimensions
*Spools as standards. 1 m. or 1,22 m. sticks, special spool lengths or cut pieces available on request.
Size
As Supplied(mm)
After Recovery(mm)
3/64
≥1.2
0.18
0.65
0.30
200
1/16
≥1.6
0.18
0.85
0.33
200
3/32
≥2.4
0.25
1.2
0.36
200
1/8
≥3.2
0.25
1.6
0.44
200
3/16
≥4.8
0.25
2.4
0.55
100
1/4
≥6.4
0.25
3.2
0.55
100
3/8
≥9.5
0.30
4.8
0.55
100
1/2
≥12.7
0.35
6.4
0.65
100
5/8
≥16
0.35
8
0.69
100
3/4
≥19.1
0.40
9.5
0.89
100
1
≥25.4
0.45
12.7
0.90
50
1 1/4
≥32
0.45
16
0.90
50
1 1/2
≥38.1
0.50
19.1
1.00
50
2
≥50.8
0.50
25.4
1.00
25
3
≥76.2
0.55
38.1
1.20
25
4
≥100
0.55
50.8
1.30
25
5
≥120
0.55
63
1.40
25
6
≥150
0.55
75
1.40
25
7
≥180
0.55
90
1.40
25
Special sizes (up to 7 inches) and other special features available on request
