Heat shrink solder sleeve end terminals
2024/7/26 viewers
- BrandDEEM
- TypeDS-RE
Introduction
ApplicationsWaterproof solder end sealing cap is by a containing colored glass beads, square tower of copper wire, solder ring, hot melt rubber ring and heat shrinkable sleeve composition for stranded wire end is sealed and connected. It's unique combination of waterproof, fixed clamp and soldering strands connecting end seal. The product design is reliable end seals of different specifications of the wire in a single device. The product is waterproof, oil resistance, environmental protection, easy to install.
Features

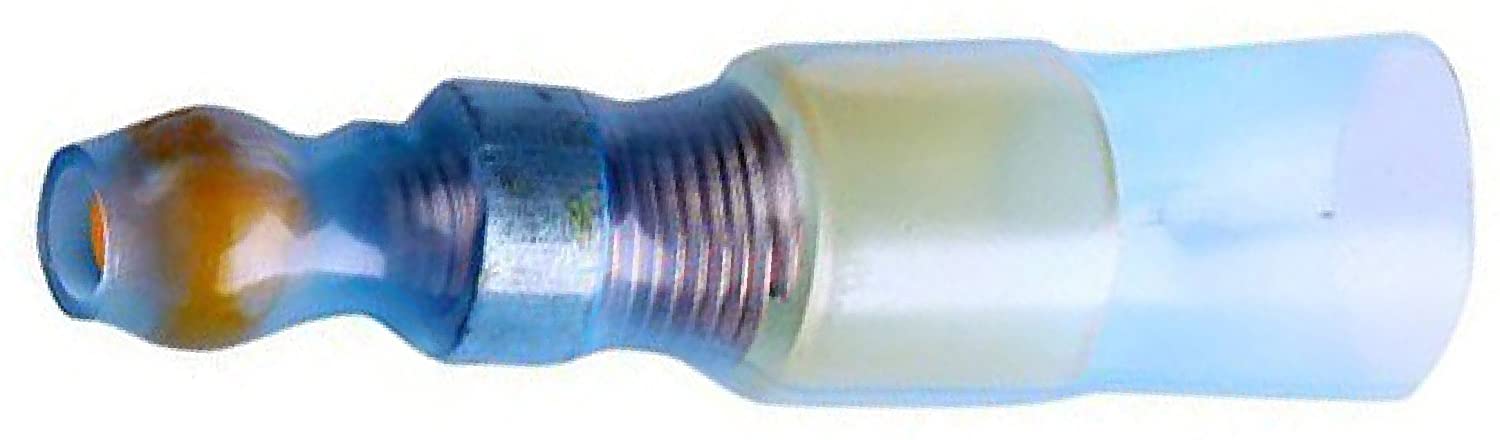

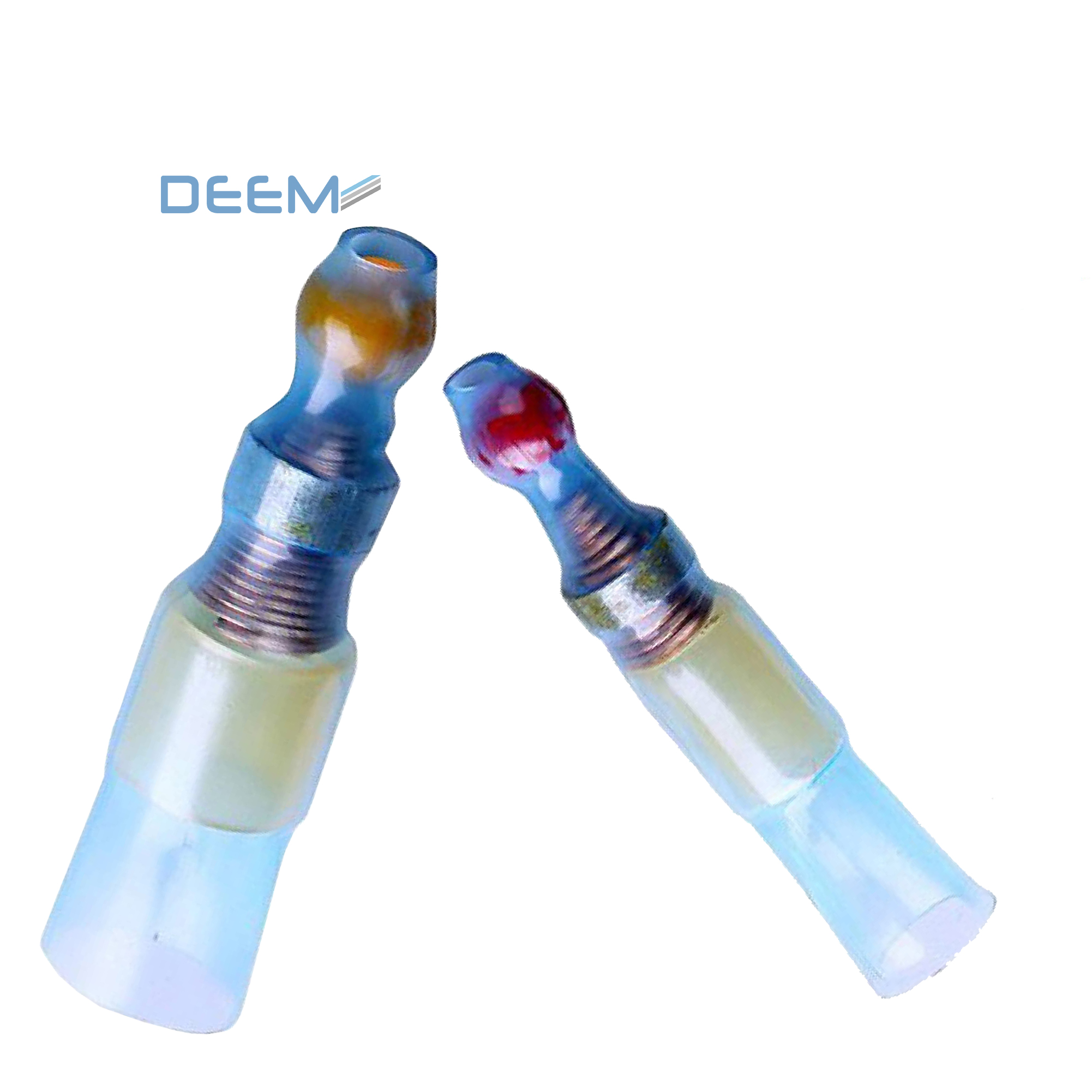

1 insulation outer tube: blue transparent cross linking modified PVDF heat pipe
2 solder ring (including flux)
3 square copper cone tower
4 end colored glass beads
5 hot melt adhesive ring
Operating temperature:
1 working temperature: -40°C~+125°C
2 start to shrink temperature: 150°C
3 full shrink temperature: 175°C
4 solder begins to dissolve temperature: 138°C
5 solder complete solution temperature: 160°C
Technical data
| Item | Typical Data |
| Operating temperature | -40℃~125℃ |
| Voltage grade | 600V |
| Protection type | IP67 |
| Volume Resistivity | ≥1013Ω.cm |
| Dielectric strength | ≥2 kV/mm |
| Part No. | Ball Color | Product dimensions(mm) | Copper cross section (mm) | Bundle diameter( mm) | ||||
| L±3.5 | ΦA(chǔ) | B |
Min mm2
( CMA)
|
Max mm2
(CMA)
|
ΦD Max |
M±1
(M±0.04)
|
||
| RE01 | Green | 38.3 | 3.6+0.4/0.2 | 26±2.0 | 0.7 | 2.4 | 3.3 | 15.0 |
| RE02 | Red | 37.7 | 5.0+0.7/0.2 | 23.5±2.0 | 2.0 | 4.0 | 4.5 | 15.0 |
| RE03 | Blue | 45.5 | 7.5+0.9/0.2 | 26.5±2.0 | 3.5 | 8.0 | 7.0 | 15.0 |
| RE04 | Yellow | 45 | 9.4+0.9/0.3 | 25.5±2.0 | 7.5 | 12.0 | 9.0 | 15.0 |
*Other size available on request.
